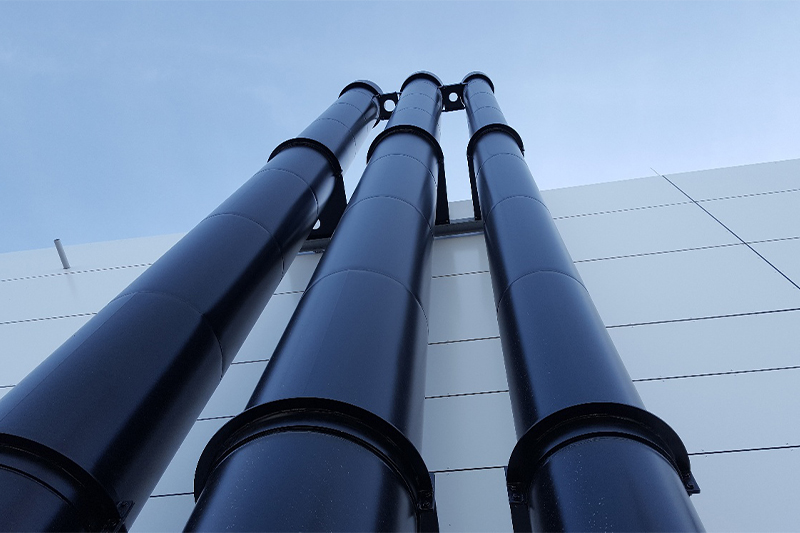

The FSA as a classic free-standing steel chimney is the universal and compact solution for every application. The double-walled steel chimney consists of a statically load-bearing outer pipe and an inner pipe carrying flue gas.
Due to the support tube arranged on the outside, construction heights of more than 263ft are possible, the multi-layer construction also allows exhaust gas temperatures of more than 1832°F.
| Model series | FSA |
|---|---|
| Static system | Anchor cage or building connection |
| Supporting element | Outer tube coated in steel |
| Construction | multi-layered |
| Inner tube | depending on the composition of the flue gas and the temperatureAISI 304 (1.4301), AISI 316 (1.4404/1.4571), 1.4828, 1.4539, S235JRG, S355 |
| Inner pipe insulation | Stone wool A1 (as wire mesh mat), mineral wool A2 (as aluminum laminated lamella mat) |
| Rear ventilation | Annular gap between insulation and support tube |
| Outer tube | S235JRG / S355 / AISI 304 (1.4301) |
| Number of inner tubes | 1 (single compartment) |
| Surface optics | Painted, galvanized steel, ground stainless steel, blasted stainless steel (cladding) |
| Attached Systems | possible |
