    SWGV

    Pressure-tight exhaust system made of stainless steel

    Pressure-tight exhaust system made of stainless steel with field cutable length for maximum flexibility during installation.



    SYSTEM_DETAIL_ICONS

    Product description

    Main features

    • All-stainless steel construction with limited lifetime warranty.
    • Assurance of finest quality and reliability.
    • Quick and easy installation.
    • Patented field cutable length for maximum flexibility during installation.

    Applications

    • Jeremias Special Gas Vent was designed specifically for the condensing boiler market where ease of assembly, overall time invested, and price are the main concerns.

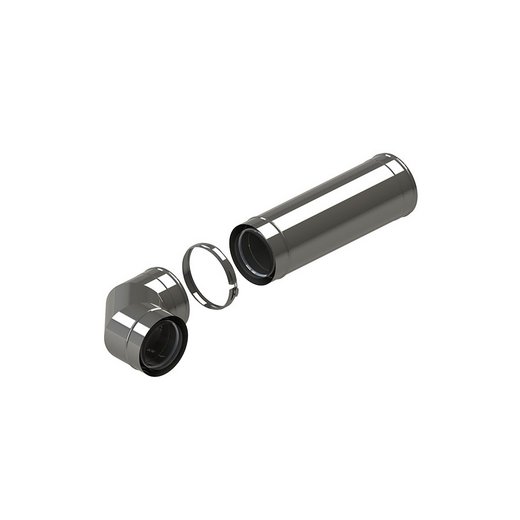

    • Unlike our other products, this Special Gas Vent will not have a conical joint, rather a gasket to seal the male-to-female connection and secured by a locking band.
    • For use with temperatures not exceeding 550°F continuous and pressures not exceeding 20” WC.

    Technical specifications

    Inner Liner Material

    ASTM 316L Highgrade stainless steel
    444 stainless-steel

    Diameter3 -  36" I.D.
    Wall thickness0.020" thick (diameters 3 - 12")
    0.035" thick (diameter 13 - 36")
    Connection3 - 12" - Industry leading 2.28” overlapping joint with silicone 3-ribbed gasket
    13 - 36" - Connection is a 1.25” conical overlapping joint with added ½” rolled flange and vee band connection. Supplied sealant is used in the vee band to make seal.
    SWGV

    UL Listings (and ULC)


    UL-1738 Standard, Venting Systems for Gas-Burning
    Appliances, Categories II, III & IV

    ULC-S636 Standard for Type BH Gas Venting Systems

    Downloads

    Sample Specification – SWGV

    Single Wall Gas Vent, Special Gas Vent for Condensing Appliances
