    Double wall systems

    Chimneys made of stainless steel with high quality insulation material, available in different designs, materials and colors



    Main advantages of Jeremias double wall exhaust systems:

    • UL listed
    • Easy installation due to perfect fitting plug-in system
    • No welding on site needed
    • High quality insulation
    • No thermal bridges between the inner and outer tube
    • Corrosion free stainless steel
    • Condensate- and gas-proof materials

    Conical

    DWKL-Lt

    • Pressure tight insulated system without gaskets
    • For kitchen ventilation systems, high pressure exhausts and gas & oli vents
    • UL-103, UL-2561, UL-2561, UL-1978, UL-1738, UL-441 and UL-641

    Flanged

    DWFL

    • Fiber insulation 1.25'' - 4.25'' thickness
    • Dramatically reduced clearance to combustibles
    • UL-2561, UL-103, UL-1738, UL-441

    DWFL +1, +2, +3 and +4

    • Ceramic fiber insulation from 1.25'' - 4.25'' thickness
    • Suitable for chimney or ventilation
    • UL-2561, UL-103, UL-1978, UL-1738, UL-441, UL-641



    DWFL-ZC Grease Duct

    • DWFL with zero wall clearance from combustible components
    • For fire rated grease ducts
    • UL-2221, UL-1978 and 90'' W.C. pressure listings for all applications

    DWFL-ZC Gas Vent

    Zero clearance & fire rated special gas vent

    • DWFL with zero clearance assembly for special gas vent
    • UL-1738, UL-1978, UL-441 and 90'' W.C. pressure listings for all applications

    Special Gas Vent

    DWGV

    • Specifically for the condensing boiler market
    • Special Gas Vents are also used for exhausting various other appliances to the outdoors
    • Male-to-female connection
    • UL-1738, ULC-S636

    DWAF - Boiler Stack

    • Special gas vent for condensing boilers and water heaters
    • UL-1738, UL-103, UL-2561

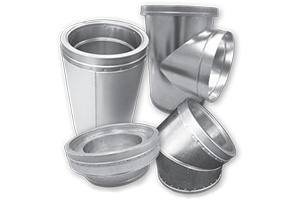

    Gas Vent Typ B

    ECCO Type B Gas Vent

    • For venting listed Natural Gas or Propane Category I. or appliances equipped with a draft hood
    • Insulating air space
    • UL-441, ULC-S605

    Grease Duct

    DWCK+1

    • Reduced Clearance Grease Duct
    • For commercial kitchen exhausts
    • 1.5” thick ceramic fiber insulation compressed into a 1.25" thick space
    • UL-1978, UL-103, UL-2561

    DWCK-ZC

    • For commercial kitchen exhausts
    • High-density ceramic fiber insulation
    • UL-2221, UL-1978

    DWGD-RZ

    • Zero clearance duct in a rectangular assembly
    • For Kitchen ventilation systems
    • Ceramic fiber insulation
    • UL-2221, UL-1978

    All fuel

    DWAF+1

    • Double wall chimney and grease duct system
    • For negative and positive pressure
    • UL-1978, UL-103, UL-2561, UL-1738
